Precision MicroFab has manufactured micro-nozzles using a variety of materials.
The top photo at right shows a 50 μm micro-nozzle in a sapphire disc. The disc is 5 mm in diameter and 0.5 mm thick. The nozzle was created using an ArF excimer laser.

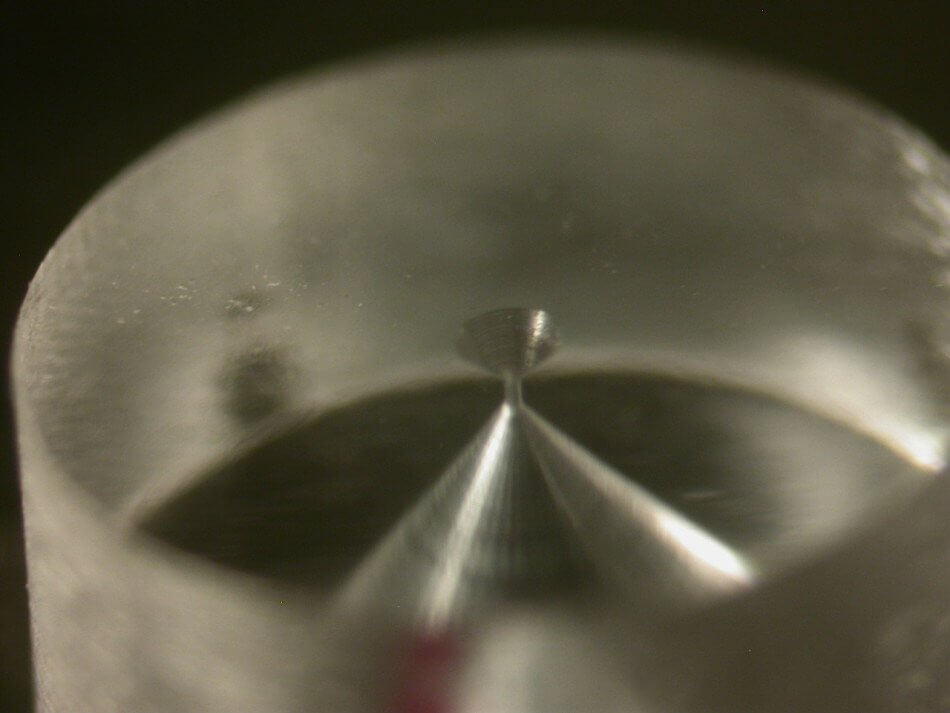

The next image shows a polycarbonate nozzle with a conical entrance and exit. The neck of the nozzle is 100 μm long and 100 μm in diameter. This nozzle was manufactured on our proprietary micro-mill.
If you’d like more information on this project or if you’re interested in a similar service
